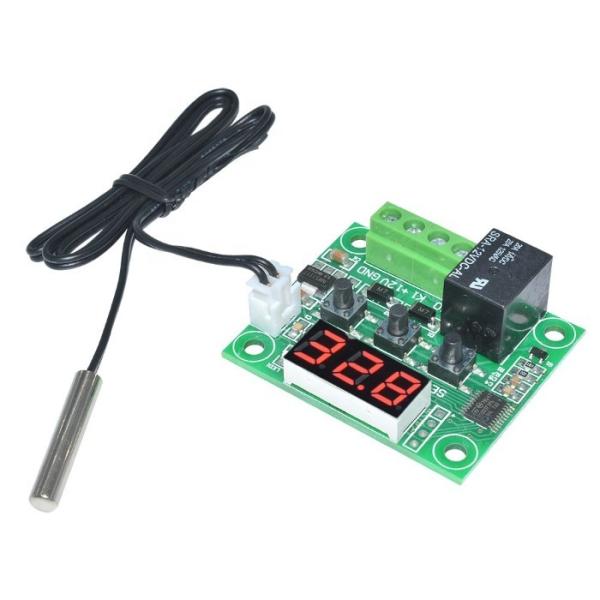

W1209 DC 12V Red LED W1209 Digital Thermostat Temperature Control Thermometer Module + NTC Waterproof Sensor Wire

    Buy cheap W1209 DC 12V Red LED W1209 Digital Thermostat Temperature Control Thermometer Module + NTC Waterproof Sensor Wire from wholesalers

    Buy cheap W1209 DC 12V Red LED W1209 Digital Thermostat Temperature Control Thermometer Module + NTC Waterproof Sensor Wire from wholesalers
    • Buy cheap W1209 DC 12V Red LED W1209 Digital Thermostat Temperature Control Thermometer Module + NTC Waterproof Sensor Wire from wholesalers
    • Buy cheap W1209 DC 12V Red LED W1209 Digital Thermostat Temperature Control Thermometer Module + NTC Waterproof Sensor Wire from wholesalers
    • Buy cheap W1209 DC 12V Red LED W1209 Digital Thermostat Temperature Control Thermometer Module + NTC Waterproof Sensor Wire from wholesalers
    • Buy cheap W1209 DC 12V Red LED W1209 Digital Thermostat Temperature Control Thermometer Module + NTC Waterproof Sensor Wire from wholesalers
    • Buy cheap W1209 DC 12V Red LED W1209 Digital Thermostat Temperature Control Thermometer Module + NTC Waterproof Sensor Wire from wholesalers

    W1209 DC 12V Red LED W1209 Digital Thermostat Temperature Control Thermometer Module + NTC Waterproof Sensor Wire

    Ask Lasest Price
    Brand Name : DZSICO
    Model Number : 010617
    Certification : SGS | ISO | CE | BV
    Price : 10 - 599 Pieces = $1.26, 600 - 11799 Pieces = $1.14, 11800 - 11999 Pieces = $1.11, ≥ 12000 Pieces = $1.07
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 20000 Pieces Per Month W1209 Digital Thermostat
    Delivery Time : 1-10T - 7Days, 11-25T - 10Days, 26-100 - 10Days, > 100-To be negotiated
    • Product Details
    • Company Profile

    W1209 DC 12V Red LED W1209 Digital Thermostat Temperature Control Thermometer Module + NTC Waterproof Sensor Wire

    W1209 DC 12V Red LED W1209 Digital Thermostat Temperature Control Thermometer Module + NTC Waterproof Sensor Wire

    # W1209 Digital Thermostat Properties

    Specifications: Temperature range :-50-110 ℃ Dimensions: 48.5 * 40mm Temperature control mode: ON / OFF Resolution:When temperature is 0.1℃, the resolution is -9.9~99.9, other temperature segment is 1℃ Control accuracy: 0.1 ℃ Hysteresis accuracy: 0.1℃ Refresh rate: 0.5S High temperature protection: 0-110℃ Supply voltage: DC 12V Static current: ≤ 35MA, attract current ≤ 65MA Output voltage: DC 12V Output power: 20A relay Measurement input: NTC (10K 0.5%) Waterproof Sensor Environmental requirements: -10 ~ 60 ℃ ,Humidity 20% -85%.


    How to use: Connect the power supply and the load, you can supply to the controller, Is displayed as a measured temperature, Press the SET button, the display flashes the temperature, Press - to set the desired temperature, After setting press SET to confirm return, The controller automatically performs the relay by setting off! Lights, LED status descriptions: Indicator: Off The relay is switched off, Always indicate the relay is closed. LED: Shows LL is the sensor open, showing ?HH is out of range, the thermostat will be forced to close the relay, the display --- as high temperature protection.


    Note: Relay output interface is a switch, when it working ,these two ports are connected, If not work, these two ports are not connected. Pls know it . !!!!!



    Here is our Market

    1. We accept OEM/ODM service.

    2. We accept whole bulk dropshipping order.

    3. Quick delivery time.


    FAQ
    Q1. What is your lead time?

    A: We will ship out the goods within 5 working days after received the payment, finally depends on quantities.

    Q2. What is your sample policy?
    A: Welcome to ask sample, we can send out the sample within 2 days, please contact us.

    Q3. Do you test all your goods before delivery?
    A: Yes, we have QC department we will do 100% test before the shipment.

    Q4. What is your warranty?
    A: Our warranty is 90 days after goods have been received.

    Q5. What's the MOQ for your products?
    A: The MOQ for each product is different, but we also accept small order, welcome to contact us.

    Q6. How do I pay for the order?
    A: You can draft an order by yourself and pay it , or contact us pay by TT , Paypal, Alipay, Wechat etc.

    Q7. Do you accept the whole bulk dropshipping order ?
    A: Yes, please contact us.


    Quality W1209 DC 12V Red LED W1209 Digital Thermostat Temperature Control Thermometer Module + NTC Waterproof Sensor Wire for sale
