    Astm A792 Galvalume 0.35mm Prepainted Color Coated Steel Coil

    Ask Lasest Price
    Brand Name : DZSICO
    Model Number : Astm A792
    Certification : ISO9001 & SGS
    Price : $620.00 - $650.00 / Ton
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : About 15000 Tons Per Month For The Steel Sheet And Coil Product
    Delivery Time : 1-10T - 7Days, 11-25T - 10Days, 26-100 - 10Days, > 100-To be negotiated
    • Product Details
    • Company Profile

    Astm A792 Galvalume 0.35mm Prepainted Color Coated Steel Coil

    Astm A792 Galvalume Prepainted Color Steel Coil For Buildings, Thickness: 0.35mm

    What Is Galvalume Prepainted Color Steel Coil ?

    Galvalume steel sheet is an alloy coated steel sheet widely utilized in many fields like building materials, home appliances, and ships. The galvalume steel sheet consists of aluminum-zinc alloy covering on the surface of the steel sheet, which consists of 55% aluminum, 43.4% zinc and 1.6% silicon solidified at 600 ° C. the entire structure is made by aluminum-iron-silicon-zinc.

    # Characteristic:

    Galvalume steel sheets have many excellent properties:

    Corrosion resistance

    The corrosion resistance is especially thanks to the protective function of aluminum and zinc. When the zinc is worn, the aluminum forms a layer of dense alumina that forestalls the corrosion-resistant material from further corroding the inside .

    # Heat resistance

    The aluminum-zinc steel plate has good heat resistance and may withstand a heat of quite 300 degrees Celsius. it's almost like the heat oxidation resistance of the aluminum-plated steel sheet and is usually used.

    Chimney tubes, ovens, illuminators and fluorescent shades.

    # Heat reflective

    Aluminized galvanized steel sheets have a high heat reflectivity, which is twice that of galvanized steel sheets, which are often used as insulation materials.

    # Economic

    Since the density of 55% of AL-Zn is smaller than the density of Zn, the aluminum-zinc steel sheet is larger than the world of the galvanized steel sheet by 3% or more within the case where the load is that the same as that of the gold-plated layer.


    # Application:

    Buildings: roofs, garages, walls, pipes and modular houses, etc.

    Automobiles: muffler, pipe , wiper attachment, fuel tank, truck box, etc.

    Home appliances: refrigerator backboard, gas stove, air conditioning , electronic microwave , LCD frame, CRT explosion-proof tape, LED backlight, electrical cabinet, etc.

    Agricultural: pig houses, chicken houses, granaries, greenhouse pipes, etc.

    Other: heat insulation cover, device , dryer, warmer, etc.

    Structure Diagram of PPGI & PPGL
    AIYIA Ral Color Metal Steel Coated PPGI Prepainted Galvanized Steel Coil
    Production Process

    AIYIA Ral Color Metal Steel Coated PPGI Prepainted Galvanized Steel Coil

    Substrate Type
    1.Hot-dip galvanized color coated steel sheet(prepainted galvanized steel sheet)
    The product obtained by coating an organic coating on a hot-dip galvanized steel sheet is a hot-dip galvanized color-coated plate. In addition to the protective effect of zinc, the hot-dip galvanized color-coated sheet also protects against rust and has a longer service life than hot-dip galvanized sheet;
    2.Hot-dip aluminum-zinc color coated sheet(prepainted galvalume steel sheet)
    Hot-dip aluminum-zinc steel sheets can also be used as color-coated substrates (55% AI-Zn and 5% AI-Zn);
    3.Electroplated zinc color coated sheet
    The electro-galvanized sheet is used as the substrate, and the product obtained by baking with the organic coating is an electrogalvanized color-coated plate. It has a beautiful appearance and excellent processing properties, and therefore can be mainly used for home appliances, audio, steel furniture, interior decoration, and the like.
    Coating Type of PPGI & PPGL
    Polyester (PE): Good adhesion, rich colors, wide range in formability and outdoor durability, medium chemical resistance, and low cost.
    Silicon modified polyester(SMP): Good abrasion resistance and heat resistance, as well as good external durability and chalking resistance, gloss retention, general flexibility, and medium cost.
    High Durability Polyester(HDP): Excellent color retention and anti-ultraviolet performance, excellent outdoor durability and anti-pulverization, good paint film adhesion, rich color, excellent cost performance.
    Polyvinylidene Fluoride(PVDF)
    : Excellent color retention and UV resistance, excellent outdoor durability and chalking resistance, excellent solvent resistance, good moldability, stain resistance, limited color, and high cost.
    Main Features
    1.Good durability and long life compared with galvanized steel.
    2.Good heat resistance, less discoloration at high temperature than galvanized steel.
    3.Good thermal reflectivity.
    4.Processability and spraying performance similar to galvanized steel.
    5.Good welding performance.
    6.Good performance-price ratio, durable performance and extremely competitive price.
    Product details

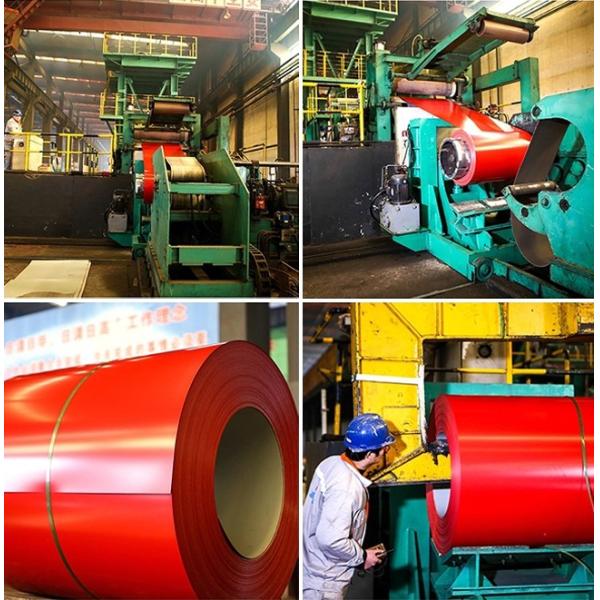

    Production workshop

    Packaging & Shipping: New design crca sheet crgo electr steel coil

    Guide For Ordering Products

    Q1: How can I buy products in my country?
    A1: Please send us an inquiry or e-mail, we will reply to you and send you a trade assurance order if you need.
    Q2: How long does it take to get the product if I place an order
    A2: A: For stock products, will make shipments in 5- 7 days after receiving deposit or receiving L/C; for products need new production for common materials, usually make shipments in 15-20 days; for products need new production for special and rare materials, usually need 30-40 days to make shipment.
    Q3: How to make payment?
    A3: First send us an inquiry, and we will reply with our quotation. If our price suits you, we will prepare proforma invoice with our banking detail.
    Q4: Can you do customization & reproduction if I provide a photo?
    A4: Yes
