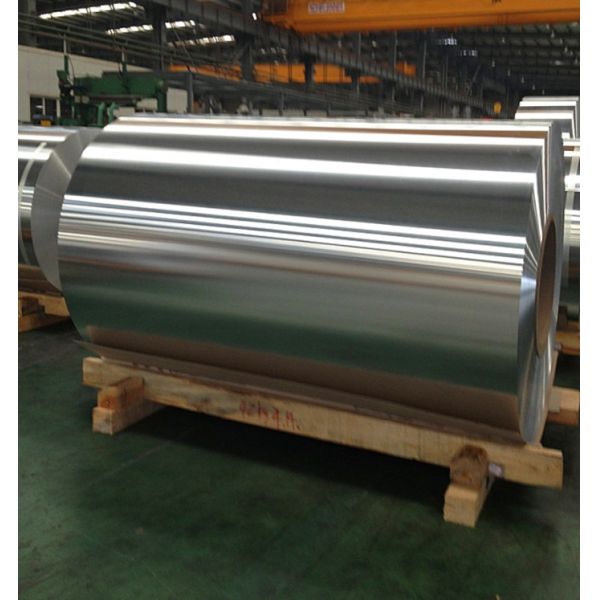

    ASTM B209 5052 O Aluminium Alloy Coil For Boat Building

    Ask Lasest Price
    Brand Name : DZSICO
    Model Number : 5052 O Aluminum
    Certification : SGS | ISO | CE | BV
    Price : 2000 - 199999 Kilograms = $1.49, ≥ 200000 Kilograms = $0.99
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 2000 Ton/tons Per Month 5052 O Aluminum Alloy Sheet Coils
    Delivery Time : 1-10T - 7Days, 11-25T - 10Days, 26-100 - 10Days, > 100-To be negotiated
    • Product Details
    • Company Profile

    ASTM B209 5052 O Aluminium Alloy Coil For Boat Building

    ASTM B209, 5052 O Aluminum Alloy Sheet Coil Suppliers Prices For Boat Building

    Aluminum alloy 5052 contains nominally 2.5% magnesium, 0.25% chromium and has good workability, medium static strength, high fatigue strength, good weldability, and really good corrosion resistance, especially in marine atmospheres. It also has the rarity and excellent thermal conductivity almost like other aluminum alloys. Alloy 5052 are often hardened by cold work and isn't heat treatable to higher strength. Since the alloy spontaneously ages at temperature immediately after cold work, all flat rolled mill products are furnished with stable properties employing a stabilization treatment. this is often usually achieved by a stabilization thermal treatment, either a coffee temperature thermal treatment or as a results of heat introduced during rolling, which ends up within the H3x tempers.

    This grade is employed during a wide selection of atmospheric environments, including food and architectural applications and in many marine environments. The magnesium content is low enough that it doesn't suffer from the strain corrosion cracking which will affect alloys with quite about 3.5% Mg. Alloy 5052 is additionally used for consumer electronics casings, notebook computers and televisions.

    Chemical Composition
    Spec: BS EN 573-3:2009
    Alloy 5052

    Chemical Element % Present
    Manganese (Mn) 0.0 - 0.10
    Iron (Fe) 0.0 - 0.40
    Copper (Cu) 0.0 - 0.10
    Magnesium (Mg) 2.20 - 2.80
    Silicon (Si) 0.0 - 0.25
    Zinc (Zn) 0.0 - 0.10
    Chromium (Cr) 0.15 - 0.35
    Others (Total) 0.0 - 0.15
    Other (Each) 0.0 - 0.05
    Aluminium (Al) Balance


    Properties

    Physical Property Value
    Density 2.68 g/cm³
    Melting Point 605 °C
    Thermal Expansion 23.7 x10^-6 /K
    Modulus of Elasticity 70 GPa
    Thermal Conductivity 138 W/m.K
    Electrical Resistivity 0.0495 x10^-6 Ω .m

    Spec: BS EN 485-2:2008
    Sheet and Treadplate - 0.2mm to 6.00mm

    Mechanical Property Value
    Tensile Strength 210 - 260 MPa
    Proof Stress 130 Min MPa
    Hardness Brinell 61 HB


    Alloy Designations

    Alloy 5052 corresponds to the following standard designations and specifications but may not be a direct equivalent:

    Al Mg 2.5

    Al 2.5Mg Cr


    Temper Types

    The most common tempers for 5052 aluminium are:

    H32 - Work hardened by rolling then stabilised by low-temperature heat treatment to quarter hard


    Supplied Forms

    The main form supplied of this alloy is TripleGrip Treadplate

    • Sheet

    • Extrusions

    • Plate

    • Treadplate/Patterened Sheet


    Weldability

    Weldability – Gas: Good

    Weldability – Arc: Very Good

    Weldability – Resistance: Very Good

    Brazability: Acceptable

    Solderability: Not recommended


    Fabrication

    Workability – Cold: Good

    Machinability: Acceptable


    As one of the subsidiaries of Hing Kei Metal Group, we supply all kinds of non-ferrous material to the world with ISO9001 standard
    and RoHs certification, SGS certifaction.
